The 300ZX’s five-speed manual‚ the FS5R30A‚ gained acclaim for its robust design and precise shifting‚ becoming a favorite among enthusiasts.
Overview of the FS5R30A Transmission
The FS5R30A transmission‚ a cornerstone of the Nissan 300ZX’s appeal‚ is a five-speed manual gearbox renowned for its durability and engaging driving experience. Developed by Nissan‚ it was specifically engineered to handle the power output of both the naturally aspirated and twin-turbocharged VG30E and VG30DETT engines.
Its internal components feature robust gears and synchromesh mechanisms‚ contributing to smooth and precise shifts. The transmission’s casing is constructed from a strong alloy‚ enhancing its ability to withstand the stresses of spirited driving. Notably‚ the FS5R30A incorporates a sophisticated shift linkage system‚ providing a direct and tactile connection between the driver and the drivetrain. This transmission is a key element in the 300ZX’s legacy as a performance icon.
Why the 300ZX Manual is Highly Regarded
The 300ZX’s manual transmission enjoys a stellar reputation within the automotive community due to its exceptional feel and reliability. Enthusiasts praise its precise shift gates and robust construction‚ capable of handling significant power upgrades. Unlike some contemporary transmissions‚ the FS5R30A remains remarkably durable‚ even with decades of use.
Its direct connection to the engine enhances driver engagement‚ fostering a more visceral and rewarding driving experience. The transmission’s ability to withstand aggressive shifting and track use further solidifies its standing. Many consider it a crucial component in unlocking the 300ZX’s full performance potential‚ making it a highly sought-after feature.
Technical Specifications & Components
The FS5R30A boasts a robust internal structure‚ featuring carefully engineered gears and synchromesh systems designed for smooth‚ reliable operation and durability.
Gear Ratios for the 5-Speed Manual
The 300ZX’s FS5R30A five-speed manual transmission utilizes a carefully selected set of gear ratios to balance acceleration‚ cruising efficiency‚ and overall performance. First gear typically comes in at 3.327‚ providing strong initial acceleration. Second gear is geared at 1.939‚ continuing the pull. Third gear‚ at 1.389‚ offers a good balance for mid-range power. Fourth gear‚ with a ratio of 1.000‚ is a one-to-one ratio for efficient highway cruising. Finally‚ fifth gear‚ at 0.741‚ provides excellent fuel economy at higher speeds.
These ratios were specifically chosen to complement the engine’s powerband‚ delivering a responsive and engaging driving experience. The final drive ratio‚ varying by model‚ further influences the overall gearing.
Synchromesh and its Importance
Synchromesh is a critical component within the 300ZX’s FS5R30A manual transmission‚ enabling smooth and effortless gear changes. It functions by momentarily matching the speeds of the gears before engagement‚ preventing grinding and reducing wear. Without properly functioning synchros‚ shifting becomes difficult‚ noisy‚ and damaging to the transmission.
The 300ZX transmission employs synchros on all forward gears‚ contributing to its reputation for a precise shift feel. Over time‚ these synchros can wear‚ leading to grinding‚ particularly when shifting into specific gears. Maintaining healthy synchromesh is vital for preserving the transmission’s longevity and driving enjoyment.
Differential Types (VLSD vs. Open)
The 300ZX manual transmission cars were commonly equipped with one of two differential types: an open differential or a Viscous Limited-Slip Differential (VLSD). Open differentials distribute power equally to both rear wheels‚ which can lead to wheelspin during aggressive driving.
The VLSD‚ a desirable upgrade‚ minimizes wheelspin by transferring torque to the wheel with more traction. This enhances cornering performance and provides improved stability. Identifying which differential a 300ZX possesses is crucial for understanding its handling characteristics and potential performance capabilities. The VLSD significantly improves the car’s balance and responsiveness.
Common Issues & Troubleshooting
300ZX manual transmissions can experience synchro wear‚ clutch slippage‚ shift linkage problems‚ and throw-out bearing failures requiring careful diagnosis and repair.
Synchro Wear and Grinding Gears
Synchromesh units within the FS5R30A transmission are crucial for smooth gear engagement‚ and wear is a common issue in these older units. Over time‚ the brass synchro sleeves and cones experience friction‚ leading to reduced effectiveness. This manifests as difficulty shifting into gear‚ particularly second and third‚ and the dreaded grinding noise during shifts.
Several factors contribute to synchro wear‚ including aggressive driving habits‚ infrequent fluid changes‚ and simply the passage of time. A worn synchro doesn’t properly match the gear speeds before engagement‚ causing the gears to clash. Early detection is key; a slight grind can be tolerated initially‚ but ignoring it will accelerate wear and potentially damage the gears themselves. Proper diagnosis involves assessing the severity of the grinding and identifying which gears are affected.
Clutch Problems: Slipping and Engagement
Clutch issues are frequently encountered in 300ZX manual transmissions‚ presenting as either slipping or engagement problems. Slipping occurs when the clutch disc cannot maintain friction with the flywheel‚ resulting in engine RPM increasing without a corresponding increase in vehicle speed – often noticeable in higher gears under acceleration. This indicates wear or contamination of the clutch disc.
Engagement problems‚ conversely‚ can manifest as a sticky pedal‚ difficulty getting into gear‚ or a clutch that engages very high in the pedal travel. These issues often stem from a failing master or slave cylinder‚ air in the hydraulic line‚ or a worn pressure plate. Thorough inspection of the entire clutch system is vital for accurate diagnosis and repair.
Shift Linkage Adjustment and Wear
The 300ZX’s shift linkage‚ connecting the shifter to the transmission‚ is prone to wear and requires periodic adjustment to maintain precise gear selection. Over time‚ the bushings within the linkage degrade‚ creating excessive play and imprecise shifts‚ sometimes even leading to difficulty finding specific gears. Symptoms include a vague or sloppy shifter feel.
Proper adjustment involves checking for worn components and tightening or replacing them as needed. Upgrading to aftermarket solid bushings can significantly improve shift feel and responsiveness. Regular inspection and maintenance of the shift linkage are crucial for preserving the enjoyable driving experience the 300ZX manual transmission offers.
Throw-Out Bearing Failure Symptoms
A failing throw-out bearing in the 300ZX manual transmission typically manifests as a squealing or chirping noise when the clutch pedal is depressed. This sound often disappears when the pedal is fully engaged or released. Ignoring this symptom can lead to a complete bearing failure‚ resulting in clutch disengagement issues and potential damage to the pressure plate and flywheel.
Other indicators include difficulty shifting‚ especially into first or reverse gear‚ and a rattling noise even when the clutch isn’t being used. Prompt diagnosis and replacement of the throw-out bearing are essential to prevent further complications and maintain the functionality of the manual transmission system.
Maintenance & Repair
Regular fluid checks‚ clutch adjustments‚ and addressing any unusual noises are crucial for 300ZX manual transmission longevity and optimal performance.
Fluid Changes: Type and Frequency
Maintaining the correct fluid level and condition is paramount for the 300ZX’s FS5R30A manual transmission. Nissan recommends using Genuine Nissan Manual Transmission Fluid‚ or a high-quality GL-4 rated 75W-90 synthetic gear oil. Avoid GL-5 fluids‚ as they can corrode the synchros.
Fluid change frequency depends on driving conditions; For normal street use‚ a fluid change every 30‚000 miles or three years is generally sufficient. However‚ for aggressive driving‚ track use‚ or frequent towing‚ shortening the interval to 15‚000-20‚000 miles is advisable.
Always inspect the fluid for metal shavings or a burnt smell during changes‚ indicating potential internal wear. A magnetic drain plug can help capture metallic debris‚ aiding in early diagnosis of issues.
Clutch Replacement Procedure
Replacing the 300ZX’s clutch requires careful attention to detail. Begin by disconnecting the battery and safely lifting the vehicle. Drain the transmission fluid before removing the driveshaft and exhaust components for access. Disconnect the shift linkage‚ speedometer cable‚ and clutch hydraulic line.
Support the transmission while removing the bolts connecting it to the engine. Once separated‚ access the clutch assembly. Inspect the flywheel for wear or damage; resurfacing or replacement may be necessary. Install the new clutch disc‚ pressure plate‚ and throw-out bearing.
Reassemble in reverse order‚ ensuring proper alignment and torque specifications. Bleed the hydraulic clutch line thoroughly before lowering the vehicle and testing.
Synchromesh Replacement Guide
Synchromesh replacement on the 300ZX’s FS5R30A transmission is a complex undertaking‚ best suited for experienced mechanics. It necessitates complete transmission removal and disassembly. Carefully inspect all synchronizer components for wear‚ scoring‚ or damage during the teardown process.
Specialized tools are crucial for removing and installing the synchronizers without damaging the gears or transmission case. Replace not only the synchronizer rings but also the keys and springs for optimal performance. Ensure proper lubrication with high-quality transmission grease during reassembly.
Precise alignment and torque specifications are vital to avoid future issues. Thoroughly test the transmission after reinstallation.
Shift Linkage Repair and Upgrade Options
The 300ZX’s shift linkage can develop looseness over time‚ resulting in imprecise shifts. Repair often involves replacing worn bushings – a relatively inexpensive fix. Inspect the linkage rods and ball joints for play; replacement may be necessary if damage is extensive.
For enhanced shift feel‚ consider upgrade options like aftermarket short shift kits. These kits reduce throw length‚ providing quicker‚ more direct gear changes. Upgraded bushings‚ often made from polyurethane‚ offer increased durability and reduced deflection.
Proper adjustment of the linkage is critical after any repair or upgrade to ensure smooth and accurate shifting.
Performance Modifications
Enhancements for the 300ZX manual include short shifters for quicker gear changes and upgraded clutches designed to handle increased engine power reliably.

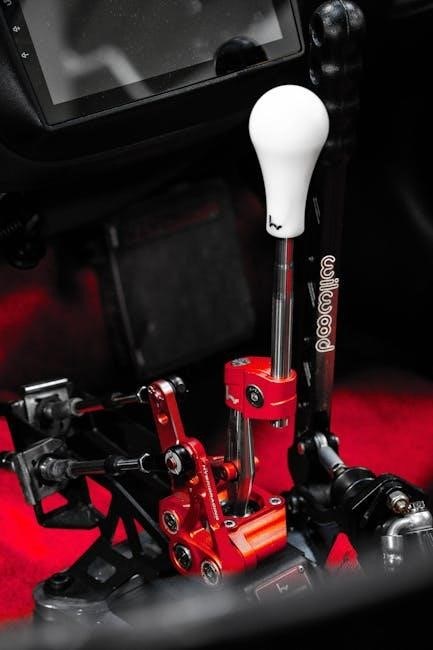

Short Shifters: Benefits and Installation
Installing a short shifter on your 300ZX manual transmission dramatically improves the driving experience by reducing the throw between gears. This results in quicker‚ more precise shifts‚ enhancing performance and driver engagement. Several manufacturers offer kits specifically designed for the FS5R30A‚ varying in adjustability and price point.
Installation typically involves removing the existing shift linkage components and replacing them with the shorter‚ more direct shifter assembly. While generally a straightforward process for experienced DIY mechanics‚ it requires careful attention to detail and proper alignment. Incorrect installation can lead to binding or difficulty selecting gears. Professional installation is recommended if you lack experience with transmission work. Expect a noticeable improvement in shift feel after installation‚ making spirited driving even more rewarding.
Upgraded Clutch Options for Increased Power

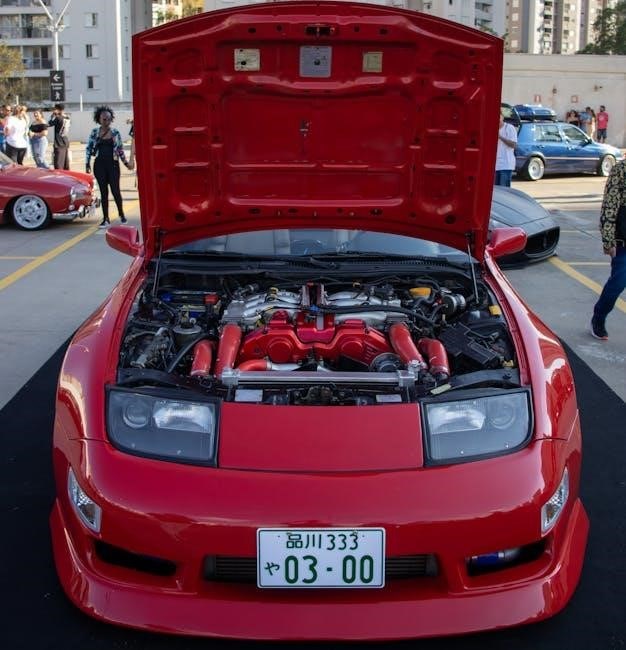

As modifications increase the power output of your 300ZX’s VG30DE or VG30DETT engine‚ the stock clutch may struggle to maintain grip‚ leading to slippage and lost power. Upgrading to a performance clutch is crucial for reliably transferring increased torque to the wheels. Options range from enhanced organic clutches for moderate power gains to full metallic or ceramic clutches designed for extreme horsepower levels.
Consider your driving style and intended use when selecting a clutch. More aggressive clutches offer higher holding capacity but can be harder to engage smoothly for daily driving. Installation requires removing the transmission‚ so it’s often paired with a flywheel resurfacing or upgrade. A properly matched clutch ensures optimal performance and longevity‚ preventing premature wear and maximizing your 300ZX’s potential.
Resources and Community
Dedicated online forums and specialized parts suppliers provide invaluable support‚ knowledge‚ and components for maintaining and modifying your 300ZX manual transmission;
Online Forums and Communities
A thriving online community surrounds the Nissan 300ZX‚ offering a wealth of information specifically regarding the manual transmission. Forums like 300ZXClub.net and Z31.com are excellent starting points for owners seeking advice‚ troubleshooting assistance‚ or simply connecting with fellow enthusiasts. These platforms host detailed discussions on everything from synchromesh issues and clutch upgrades to complete transmission rebuilds.
Members frequently share their experiences‚ repair guides‚ and parts sourcing tips. Facebook groups dedicated to the 300ZX also provide a convenient space for quick questions and local meetups. Active participation in these communities can significantly simplify maintenance and repair efforts‚ providing access to collective knowledge that’s hard to find elsewhere. Don’t hesitate to ask questions – the 300ZX community is generally very welcoming and helpful!
Parts Suppliers for 300ZX Manual Transmissions
Sourcing parts for the 300ZX manual transmission can require some diligence‚ as certain components are becoming increasingly rare. Several suppliers specialize in 300ZX parts‚ both new and used. ZParts.com is a well-known resource for new and remanufactured transmission components‚ including synchromesh sets and gears.
RockAuto offers a range of parts at competitive prices‚ though availability can vary. For used parts‚ eBay and dedicated 300ZX forums often have members selling salvaged transmissions or individual components. Be cautious when purchasing used parts‚ carefully inspecting their condition before committing to a purchase. Specialty transmission shops may also rebuild and sell 300ZX manual transmissions‚ offering a reliable‚ albeit more expensive‚ option.
